Trigger Sprayers: A Basic Introduction

Introduction

If you are new to packaging, a trigger sprayer might just look like “the thing on top of a cleaner bottle.” But choosing the right one matters for performance, cost, and customer satisfaction. This guide covers the basics — no technical background required.

1. What Is a Trigger Sprayer?

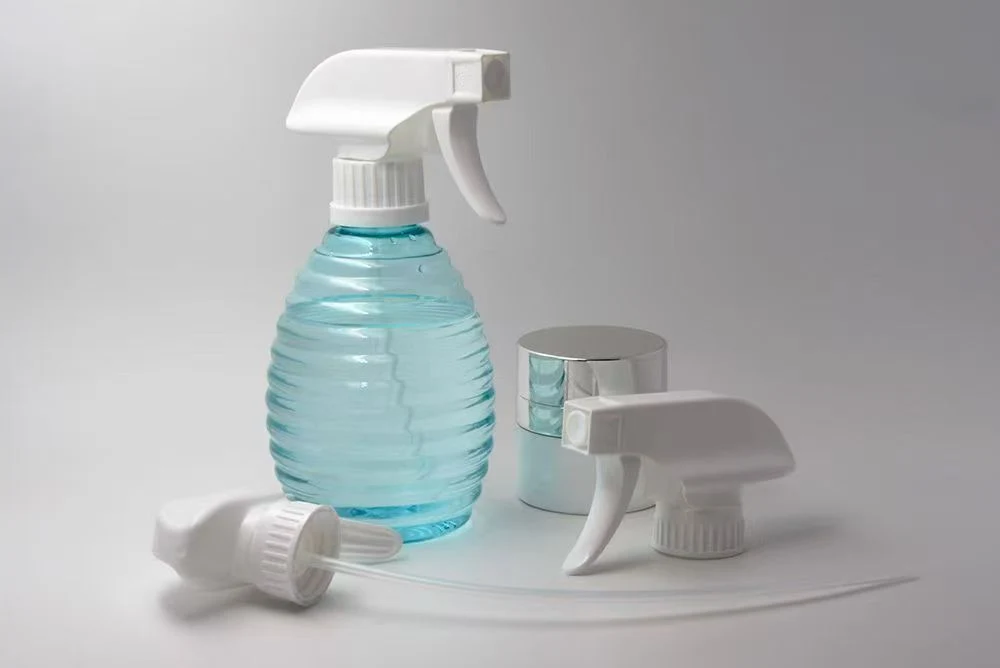

A trigger sprayer is a hand-operated pump mechanism attached to a bottle. When the user pulls the trigger, the sprayer draws liquid up through a dip tube and pushes it out through a nozzle — typically as a fine mist or a direct stream.

They are most commonly found on:

Household cleaners (kitchen, bathroom, glass)
Garden and plant care products
Automotive cleaners
Personal care sprays (hair, body, facial mists)

2. Main Components

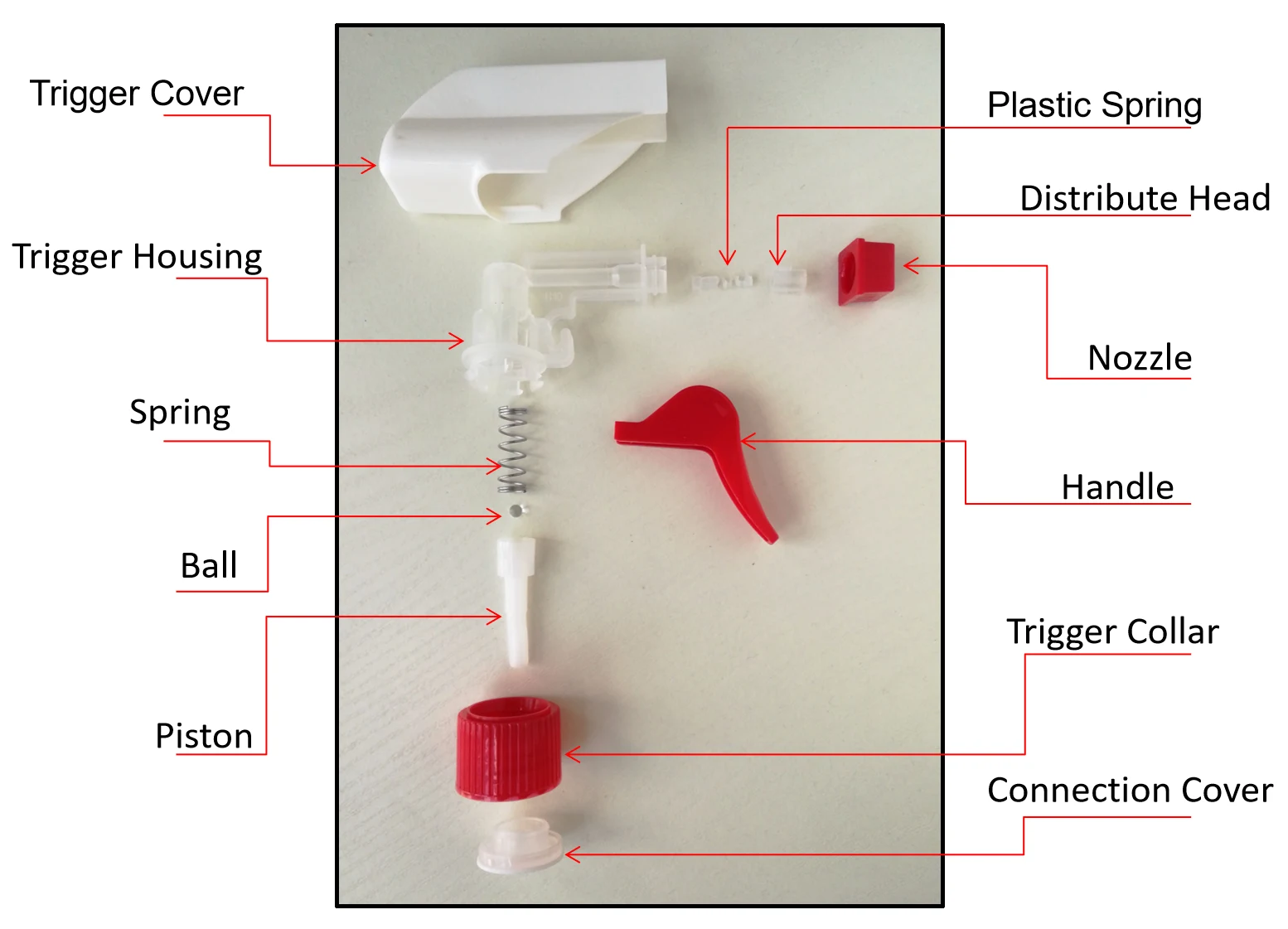

A typical trigger sprayer has eleven basic parts. Below is the structure for reference:

Component	What It Does
Trigger	User pulls this to activate the pump
Spring	Returns the trigger to its original position
Piston	Creates suction to draw up liquid
Housing	The main body holding everything together
Nozzle	Adjusts spray pattern (mist, stream, or foam)
Dip tube	Extends into the bottle to reach liquid
Gaskets/seals	Prevent leaks at connection points

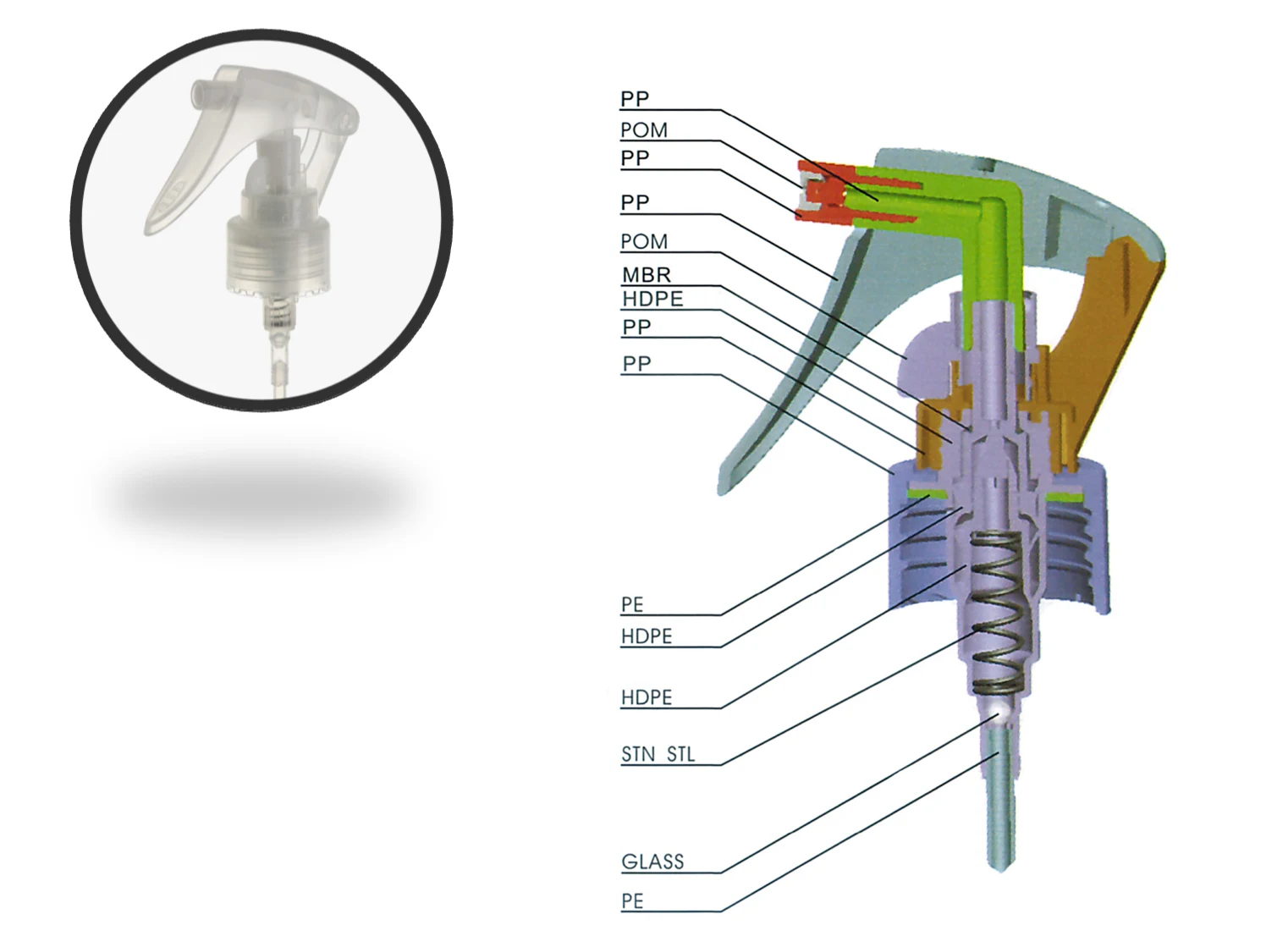

Some sprayers include additional features like locking clips to prevent accidental spraying during shipping, you can find the structure as below shown.

3. Common Materials

Most trigger sprayers are made from a combination of the following materials:

Material	Typically Used For
Polypropylene (PP)	Body, trigger, housing
Polyethylene (PE)	Dip tube
Stainless steel or brass	Spring
TPE, silicone, or rubber	Gaskets and seals

Note: The spring is almost always metal — either stainless steel or coated steel. This is the standard across most trigger sprayers available today.

4. How to Choose a Trigger Sprayer

Consider these critical factors:

What liquid are you filling?

Water-based liquids are easiest. Thick liquids (gels, creams) may require larger output. Aggressive liquids (bleach, acidic cleaners) will affect material choice.

What is your bottle neck size?

Common sizes include 24/400, 28/400, and 28/410. Your bottle and sprayer must match.

What is your budget?

Basic models are low cost, while premium models with better seals or softer triggers cost more.

Do you need custom branding?

Many sprayers can be color-matched (MOQ applies).

5. How to Test Before Mass Production

Always test before ordering large quantities:

Order samples from your supplier
Fill them with your actual product
Store upright and inverted for 7–14 days
Test spray pattern, output, and leakage weekly
Simulate shipping conditions (shake, drop, temperature change)
